Dual Monitor Setup on 48 Inch Desk: 5 Layouts That Fit
Written by Deylian Heykoop10 min readA 48-inch desk sounds wide until two monitor stands, a keyboard, a mouse, speakers, and a mug all start competing for the same surface. A good dual monitor setup on 48 inch desk space usually comes down to three decisions: screen size, stand footprint, and how much you angle the displays.
You do not need a huge workstation to make two screens comfortable. You do need to stop treating both monitors as if they deserve the center of the desk.
Dual monitor setup on 48 inch desk: start with the math
A 48-inch desktop gives you 4 feet of width, but not all of it is usable. If the desk has thick side legs, a wall on one side, or a clamp lamp, your real monitor zone may be closer to 42–45 inches.
Monitor sizes are diagonal, so two “27-inch” monitors are not 54 inches wide. Still, they take more room than most people expect.
| Monitor size | Typical screen width | Two side by side | Fit on a 48-inch desk? |
|---|---|---|---|
| 22-inch | About 19.5 inches | About 39 inches | Easy, even with a slight angle |
| 24-inch | About 21.3 inches | About 42.6 inches | Best all-around fit |
| 27-inch | About 24.1 inches | About 48.2 inches | Only works well with arms or overlap angles |
| 32-inch | About 28.1 inches | About 56.2 inches | Not recommended as a side-by-side pair |
The width number is only half the story. Factory monitor stands often use 8–11 inches of desk depth and block the best keyboard position, which matters a lot on a desk that is only 24 inches deep.
5 layouts that make two monitors feel less crowded
The right layout depends on whether you use both screens equally or one screen mainly for chat, email, references, or dashboards. Pick the layout based on your work pattern first, then buy hardware around it.
1. Two 24-inch monitors angled inward for the safest fit

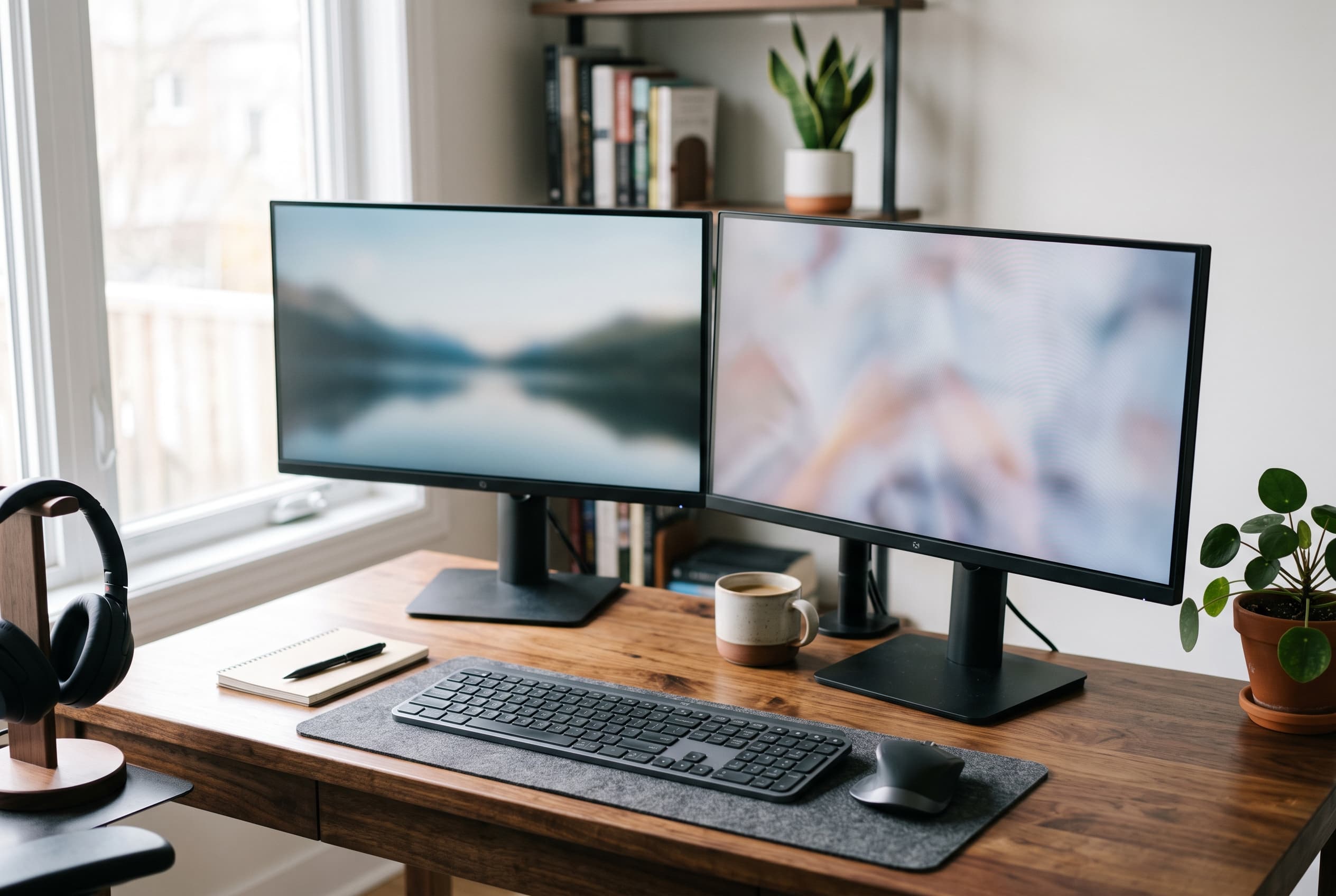

This is the most reliable layout for a 48-inch desk. Put both 24-inch monitors on the desk, angle each one inward by roughly 15–25 degrees, and center the gap between them with your nose.
The combined width stays close to 43 inches before angling, so you still have a little side clearance. This works for coding, spreadsheets, writing, research, and general office work where you use both screens often.
The tradeoff is depth. If both monitors sit on stock stands, their feet can push your keyboard too close to the desk edge.
2. One centered main monitor plus one angled side monitor
If you spend 70% or more of your time on one screen, make that monitor the center. Place the second monitor to your left or right at a 30–45 degree angle, with its inner edge near the main display.
This layout reduces neck twisting because your main work stays directly in front of you. The side screen becomes a reference zone for Slack, email, calendar, documentation, preview windows, or video calls.
For example, a 27-inch main monitor and a 24-inch side monitor can work on a 48-inch desk if the side screen is angled and preferably mounted on an arm. Two flat 27-inch monitors usually feel too wide unless you sit farther back than most compact desks allow.
3. Two monitors on separate arms to reclaim 150–220 square inches
Monitor arms are the biggest space saver when the desk surface feels crowded. A typical factory stand might occupy 9 by 10 inches, or 90 square inches; two stands can take 180 square inches before you place anything else.
With arms, the monitor bases move to the back edge of the desk. That frees the central area for your keyboard, mouse, notebook, and forearms.
Mini-example: Maya uses two 24-inch monitors on a 48 by 24-inch desk. Replacing two stock stands with a $95 dual monitor arm clears about 170 square inches, lets her move the keyboard 4 inches farther back, and removes the daily habit of reaching around a monitor foot for her mouse.
Before buying, check the desktop thickness, rear clearance, grommet location, and weight rating. If you are unsure whether your desk can take a clamp, use this checklist on whether your desk can support a monitor arm.
4. One horizontal monitor plus one vertical monitor
A vertical side monitor is the best way to keep width under control. A 24-inch monitor in portrait mode is usually about 12–13 inches wide, so it fits neatly beside a 24-inch or 27-inch main screen.
Write posts like this in Motionhooks
Brand voice + AI. Your tone, not the internet’s average.
This layout is strong for writing, coding, legal documents, long PDFs, task lists, and chat. It is weaker for video editing timelines, wide spreadsheets, and side-by-side design work.
Place the vertical monitor on the side of your dominant reference tasks. If you read long documents while typing, put it opposite your mouse hand so the mouse area stays open.
5. Laptop plus one external monitor when two full screens are too much
If your “second monitor” is really your laptop, you can keep the desk lighter by using the laptop as a side display. A 13–16-inch laptop takes less width than a second full-size monitor and can sit on a stand to align better with your main screen.
This is not the same as a full dual-monitor workstation, but it is often the best compact choice for hybrid workers. For a more detailed one-screen-plus-laptop arrangement, see this guide to a laptop and external monitor home office setup.
Choose monitor sizes by desk depth, not just desk width
Width decides whether the monitors physically fit. Depth decides whether they feel comfortable once you sit down.
On a 24-inch-deep desk, two 27-inch monitors can feel too close if they sit on bulky stands. On a 30-inch-deep desk, the same monitors may feel manageable because you can sit farther back and keep more of each screen in your natural field of view.
| Desk depth | Best dual-monitor size | Layout note |
|---|---|---|
| 20–22 inches | Two 22-inch monitors or one 24-inch plus laptop | Use arms if possible; stock stands eat too much depth |
| 23–25 inches | Two 24-inch monitors | Best balance of screen area and comfort |
| 26–30 inches | Two 24-inch monitors or one 27-inch plus one 24-inch | Two 27-inch monitors may work with arms and angling |
| Over 30 inches | Two 27-inch monitors | Still avoid placing both completely flat |
If you already own two 27-inch monitors, do not assume you must replace them. Try one centered and one angled, or rotate one vertically before spending money.
Set the angles so your neck turns less than 30 degrees
The common mistake is placing two monitors flat across the back of the desk. That makes each screen look tidy, but it forces more head movement, especially with 27-inch displays.
Use this process to find the right angle:
- Sit in your normal chair position with your keyboard centered on your body.
- Decide which monitor is primary, or choose a centered seam if you use both equally.
- Place the primary monitor directly in front of you, with the top of the screen near eye level.
- Bring the second monitor inward until its near edge is close to the primary screen.
- Angle the side monitor until you can read the far edge with a small head turn, not a shoulder turn.
- Work for 30 minutes, then adjust by 1–2 inches instead of rebuilding the whole setup.
For two equal monitors, a shallow V shape usually beats a straight line. For a main-plus-side setup, the side monitor can take a stronger angle because you use it less often.
Use arms, risers, or stands based on the problem you actually have
Not every cramped desk needs a monitor arm. Sometimes the real issue is height, cable clutter, or using monitors that are too large for the viewing distance.
| Fix | Best for | Weakness | Typical cost range |
|---|---|---|---|
| Dual monitor arm | Freeing desk surface and adjusting depth | Needs a strong clamp point and compatible monitors | $60–$180 |
| Two single monitor arms | Better control over uneven monitor sizes | Uses two clamp spots on the back edge | $80–$220 total |
| Monitor riser | Raising screens cheaply | Does not remove stand footprints | $20–$70 |
| Stacked shelf riser | Creating storage under screens | Can push monitors too high | $30–$100 |
| Factory stands | No extra cost | Often bulky and hard to align | $0 |
If the monitors are too low, fix height before you chase a wider desk. The top third of the screen should usually sit near eye level, with the monitor close enough to read comfortably but far enough that you are not scanning with your whole head.
If neck or shoulder strain is part of the problem, use the exact placement rules in this home office monitor height setup guide.
Keep the keyboard and mouse zone at least 26 inches wide
A dual-monitor layout fails when the input area becomes an afterthought. You need enough clear space for your keyboard, mouse, and forearms, not just enough room to display two screens.
As a practical rule, reserve at least 26 inches of clear width for a keyboard and mouse. A compact keyboard may need only 12 inches, but a full-size keyboard plus a normal mouse area often needs 24–30 inches to feel natural.
Put speakers, chargers, notebooks, and decor outside the main 26-inch zone. If they do not fit, the desk is telling you to remove accessories before blaming the monitors.
Recommended setups for common 48-inch desk users
Use these combinations as starting points, then adjust for your actual desk depth and monitor stands.
| User type | Recommended layout | Why it works |
|---|---|---|
| General office work | Two 24-inch monitors, shallow V angle | Balanced screen space without filling the full width |
| Developer | 27-inch main horizontal, 24-inch side vertical | Wide code area plus tall documentation or logs |
| Designer | 27-inch main, 24-inch angled reference monitor | Main canvas stays centered; tools and previews move aside |
| Student | 24-inch main, laptop on side stand | Lower cost and leaves room for books or notes |
| Heavy spreadsheet user | Two 24-inch horizontal monitors on arms | Enough width for sheets while keeping the keyboard area clear |
If you are buying from scratch, two 24-inch monitors are the safest recommendation for a 48-inch desk. If you already own a 27-inch monitor, pair it with a 24-inch side screen instead of buying a second 27-inch display.
A 20-minute setup checklist before you buy anything
Before ordering arms, risers, or new monitors, test the layout with what you already have. Books, cardboard boxes, and painter’s tape can answer most fit questions.
- Measure the usable desk width between legs, walls, shelves, and clamps.
- Measure desk depth from the front edge to the wall or rear obstruction.
- Look up the actual width of each monitor model, not just the diagonal size.
- Mark a 26–30-inch keyboard and mouse zone with tape.
- Place the monitors where you think they should go, then angle them inward.
- Sit for 10 minutes and switch between your usual apps.
- Note what bothers you: screen height, depth, mouse space, neck turning, or cable clutter.
- Buy the fix that addresses that specific problem.
The compact setup that works best is usually not the widest one. It is the one that keeps your main screen centered, your second screen close, and your hands clear of monitor hardware.
Frequently asked questions
- Can two 27-inch monitors fit on a 48-inch desk?
- They can physically fit only in limited layouts because two 27-inch monitors are usually about 48 inches wide together. On a 48-inch desk, they work best on monitor arms with a shallow angle, or with one monitor centered and the other angled to the side.
- What is the best monitor size for a dual setup on a 48-inch desk?
- Two 24-inch monitors are the best default choice. They provide enough screen space for most work while leaving a few inches for angling, cables, and side clearance.
- Do I need a monitor arm for a 48-inch desk?
- You do not always need one, but arms help a lot when the desk is shallow or the stock stands are large. A monitor arm is most useful when you need to reclaim desk depth and keep the keyboard centered.
- Should dual monitors be angled or straight?
- On a compact desk, angled monitors usually feel better. A shallow V shape for two equal screens or a stronger angle for a side monitor reduces neck movement and keeps the setup within the desk width.
- Is a vertical second monitor good for a small desk?
- Yes, a vertical second monitor is one of the most space-efficient options. It is especially useful for coding, writing, documents, email, chat, and task lists.
