Can My Desk Support a Monitor Arm? 7 Checks Before You Buy
Written by Deylian Heykoop10 min readA monitor arm can make a small desk feel twice as usable, but the wrong clamp can crush a cheap desktop, fail to tighten, or hit the wall before it even fits. If you are asking, “can my desk support a monitor arm,” the answer depends less on the screen itself and more on desk thickness, rear clearance, material, and where the load lands.
Use the checks below before you buy, especially if your desk is particleboard, has a rear modesty panel, or sits tight against a wall.
Can my desk support a monitor arm? Start with these 7 checks
A clamp-on monitor arm needs a flat, strong gripping area at the back or side of the desk. The arm also creates leverage: a 7 kg monitor can place much more stress on the clamp area when extended 40–50 cm forward.
Here is the quick inspection list before you look at arm models:
- Measure desktop thickness where the clamp will attach.
- Check that the underside is flat and clear for the lower clamp plate.
- Measure rear clearance behind the desk.
- Confirm the desk material is solid enough for a point load.
- Compare monitor weight with the arm’s rated range.
- Check whether a grommet mount would be safer than a rear clamp.
- Plan for reinforcement if the desktop is thin, hollow, or particleboard.
Desk thickness usually needs to be 10–85 mm, but the exact clamp range matters
Most clamp-on monitor arms list a supported desktop thickness range. Common ranges are about 10–80 mm, 15–85 mm, or 20–100 mm, but you should treat the specific product manual as the rule.

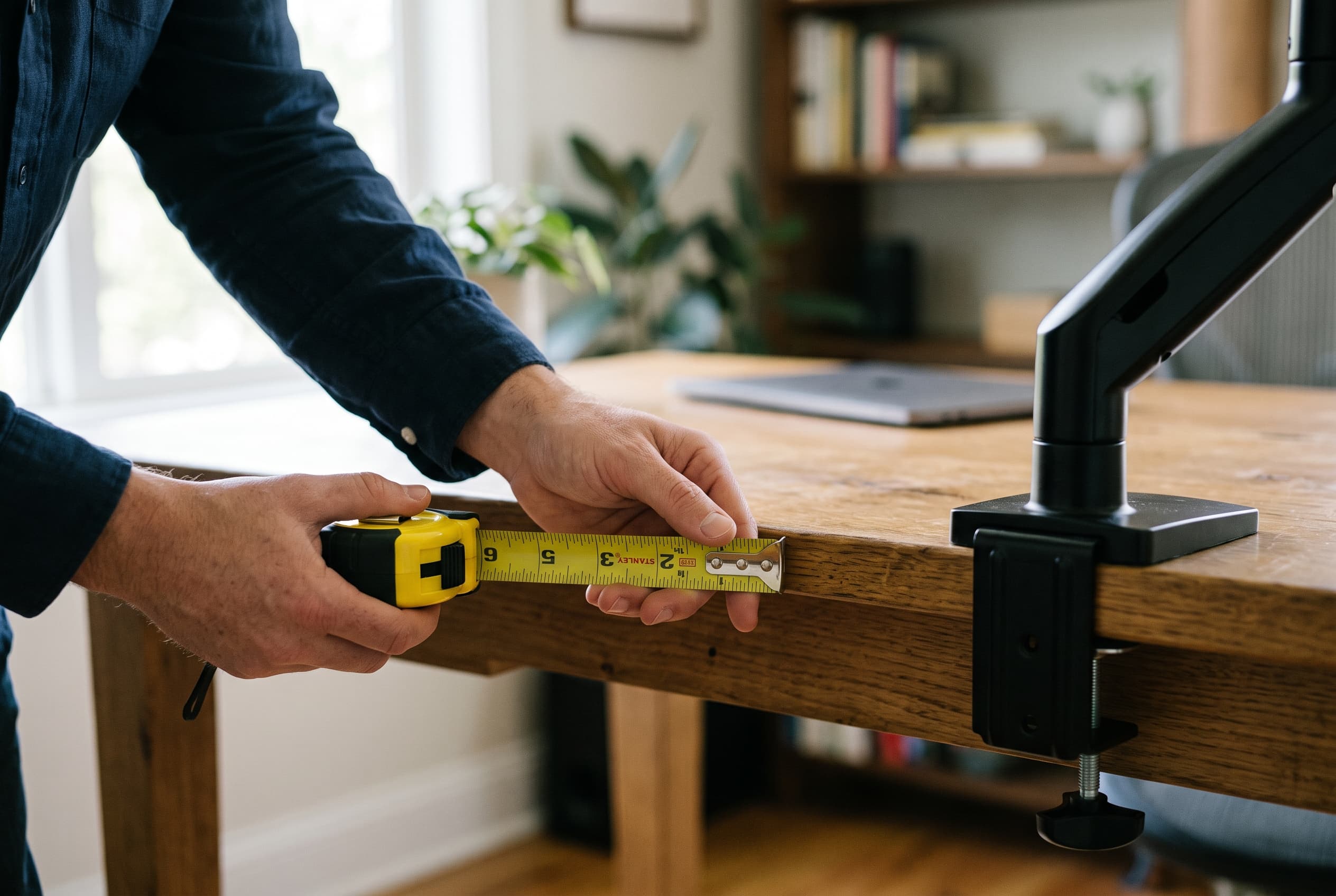

Measure the desk at the exact mounting spot, not at the front edge. Some desks have a thick-looking front lip but a much thinner rear surface.
Use a tape measure or caliper and measure from the top surface to the bottom surface where the clamp will bite. If the desk is 18 mm thick and the arm requires at least 20 mm, do not assume “close enough” will hold; the clamp may bottom out before it grips firmly.
| Measured desk thickness | Likely result | What to do |
|---|---|---|
| Under 10 mm | Usually too thin for a clamp | Use a different desk, a freestanding riser, or a reinforced grommet setup |
| 10–19 mm | May work only with some arms | Check the arm’s minimum clamp range and use a reinforcement plate |
| 20–50 mm | Often compatible | Still check material strength and underside clearance |
| 50–85 mm | Often compatible with larger clamps | Verify the arm’s maximum clamp opening before buying |
| Over 85 mm | Many clamps will not open far enough | Look for extra-large clamps or a grommet mount option |
You need a flat underside area, not just enough thickness
A clamp works by squeezing the desktop between a top bracket and a lower pressure plate. If the underside has a metal frame, cable tray, rear apron, drawer rail, or crossbar in the way, the clamp may sit crooked or fail to tighten.
Before buying, inspect a rectangular area under the rear edge. A safe working target is at least 80 mm deep and 100 mm wide of flat underside space, though larger plates may need more.
Watch for desks with a decorative back panel or modesty panel. If the panel sits 20–40 mm behind the rear edge, the clamp screw may collide with it even if the desktop itself is thick enough.
Rear clearance: leave 50–100 mm behind the desk for the clamp and arm joint
A desk pushed flush against a wall can be a poor match for a rear clamp. The clamp body, tightening knob, and first arm joint often need space behind the desktop.
As a practical rule, leave at least 50 mm behind the desk for compact clamps and 75–100 mm for bulkier gas-spring arms. If the monitor arm’s first hinge extends backward, you may need even more space when adjusting screen depth.
Here is a realistic example: a 120 cm wide desk sits 15 mm from the wall, with a 27-inch monitor on a gas-spring arm. The clamp may fit, but the rear hinge can hit the wall before the screen reaches a comfortable distance. Pulling the desk forward by 80 mm may solve the fit problem, but it also changes cable routing and walking space.
If your main reason for buying an arm is screen height, not desk space, compare it with the simpler options in this monitor arm versus monitor riser breakdown before committing to a clamp.
Particleboard and hollow-core desks are the biggest risk for clamp damage
Solid wood, plywood, and metal-framed desktops usually tolerate clamp pressure better than low-density particleboard. The issue is not just weight; it is concentrated pressure over a small area.
Write posts like this in Motionhooks
Brand voice + AI. Your tone, not the internet’s average.
Many budget desks use particleboard with a laminate skin. The surface can look sturdy, but the core may compress when a clamp is tightened, especially with a heavy monitor extended forward.
Hollow-core desks are riskier. If the desktop has a thin top skin over a cardboard honeycomb or empty cavity, the clamp can dent the surface or crush the edge.
| Desk material | Clamp-on arm risk | Buyer guidance |
|---|---|---|
| Solid hardwood | Low, if thick enough | Use normal clamp setup and protect the finish |
| Plywood | Low to medium | Good candidate if the underside is flat |
| MDF | Medium | Use a reinforcement plate and avoid overtightening |
| Particleboard | Medium to high | Use reinforcement; avoid heavy extended arms on thin tops |
| Hollow-core desktop | High | Avoid clamp mounting unless the manufacturer approves it |
| Glass | Very high | Do not clamp unless the monitor arm and desk maker explicitly allow it |
If you are still choosing a desk, the material comparison in this guide to wooden vs metal desks is useful because clamp compatibility depends heavily on the desktop structure.
A reinforcement plate spreads clamp force over a larger area
A reinforcement plate is a flat steel or aluminum plate that sits between the clamp and the desk surface. Some kits include one plate for the top and one for the underside.
The point is simple: instead of concentrating force on a clamp pad roughly 50 mm wide, the plate spreads it across a larger rectangle, often around 150–200 mm wide. That reduces dents and lowers the chance of crushing softer desktop materials.
Use a reinforcement plate if your desk is particleboard, MDF, thin plywood, or a laminate top you care about cosmetically. It is also smart for heavier monitors and dual-arm setups.
For example, suppose your 27-inch monitor weighs 6.2 kg without the stand and the arm weighs 3.5 kg. That is 9.7 kg attached near one rear corner, often extended 30–45 cm from the clamp. Spending roughly $15–$30 on a reinforcement plate is cheap protection compared with replacing a $180 desk or a $250 monitor.
Monitor weight must fit the arm’s range, not just stay under the maximum
Monitor arms have a minimum and maximum supported weight. A gas-spring arm rated for 2–9 kg may not hold a 1.5 kg portable monitor steady, and it may sag with a 9.5 kg ultrawide even if the mount technically attaches.
Check the monitor weight without the original stand. Manufacturers usually list both weights in the specifications, and the stand can add 1–3 kg.
Also include anything attached to the display: a light bar, webcam, VESA adapter, or mini PC mounted behind the screen. A 7.8 kg monitor plus a 0.6 kg light bar and 0.4 kg adapter becomes 8.8 kg before you account for cable pull.
Dual monitor arms double the load and increase twisting force
Two 24-inch monitors may seem modest, but the desk sees both weight and torque. If each monitor is 4.5 kg and the dual arm is 5 kg, the clamp area carries about 14 kg before accessories.
The bigger issue is twisting. If one screen sits left and the other right, the arm can apply side-to-side force on a small rear section of the desktop, especially when you rotate or pull the monitors forward.
For dual arms on particleboard, use a reinforcement plate as a minimum. For hollow-core or glass desks, choose another mounting method.
Grommet holes can be stronger than rear clamps when the edge is weak
A grommet mount uses a bolt through a hole in the desktop instead of gripping the rear edge. Many monitor arms include both clamp and grommet hardware, but not all do.
If your desk already has a cable grommet hole, measure it before assuming compatibility. Many mounts work with holes around 10–70 mm, but the required range varies by model.
A grommet mount can be better when the rear edge has a metal frame, rounded bevel, or shallow lip that prevents a clamp from sitting flat. It also places the load farther from a fragile edge if the hole is positioned well.
| Mount type | Best for | Main drawback |
|---|---|---|
| Rear clamp | Flat, strong rear edges with open underside space | Needs rear clearance and can damage soft materials |
| Side clamp | Desks where the back edge is blocked | Can interfere with mouse movement or nearby furniture |
| Grommet mount | Desks with weak edges or existing cable holes | Requires a suitable hole and access under the desk |
| Wall mount | Weak desktops or very heavy displays | Requires wall structure, drilling, and precise placement |
Run this 10-minute desk test before ordering the arm
You do not need special tools. A tape measure, phone flashlight, and your monitor’s spec sheet are enough for a first pass.
- Measure thickness at the mounting spot. Write down the exact millimeters and compare it with the arm’s clamp range.
- Check the underside. Look for a flat area large enough for the clamp plate and tightening screw.
- Measure rear clearance. Pull the desk from the wall if needed and confirm you can spare 50–100 mm.
- Identify the desktop material. Look under the desk, inside cable holes, or at exposed screw holes to see whether it is solid, MDF, particleboard, or hollow-core.
- Find monitor weight without the stand. Add accessories and confirm the total sits comfortably inside the arm’s rated range.
- Check VESA compatibility. Most arms use 75 x 75 mm or 100 x 100 mm VESA patterns; some monitors need an adapter.
- Decide whether reinforcement is required. Use a plate for soft, thin, or expensive surfaces.
If your desk passes six checks but fails material strength, do not ignore that result. A clamp can hold for weeks and still slowly crush a soft desktop as you adjust the screen daily.
Use screen position to decide whether an arm is worth the risk
A monitor arm is most useful when you need height, depth, and desk surface back. If your only problem is that the screen is 6 cm too low, a stable riser may be safer on a fragile desk.
For ergonomic positioning, your top line of text should usually sit at or slightly below eye level, with the monitor about an arm’s length away. The step-by-step rules in this home office monitor height setup guide can help you decide whether you need an arm’s adjustability or just a height correction.
If the desk is weak, solve the desk problem before adding leverage. A monitor arm improves ergonomics only when the mount is stable enough to stay where you put it.
When you should not use a clamp-on monitor arm
Skip a clamp-on arm if the desk has a glass top, a hollow-core surface, a badly swollen particleboard edge, or no flat underside for the clamp. Also avoid clamping to flip-up leaves, thin keyboard trays, or decorative rear lips.
Be cautious with very large ultrawide monitors. A 34-inch ultrawide may weigh 7–10 kg without the stand, and its width makes vibration more noticeable even when the arm is technically rated for the weight.
If you still want the adjustability, consider a grommet mount through a reinforced section, a wall mount into studs or masonry, or a sturdier desk. The safe choice is the one that holds the screen firmly after daily height, tilt, and depth adjustments, not just on the first installation day.
Frequently asked questions
- How thick does a desk need to be for a monitor arm?
- Many clamp-on monitor arms support desktops roughly 10–85 mm thick, but the exact range depends on the model. Measure the desk at the mounting point and compare it with the arm’s stated minimum and maximum clamp range.
- Can I put a monitor arm on a particleboard desk?
- You can sometimes use a monitor arm on particleboard, but it is riskier than solid wood or plywood. Use a reinforcement plate, avoid overtightening, and be cautious with heavy monitors or dual-arm setups.
- Is a grommet mount stronger than a clamp mount?
- A grommet mount can be stronger when the rear edge is weak, rounded, or blocked by a frame. It bolts through the desktop, so the load is not concentrated only on the back edge, but the hole and surrounding material still need to be strong.
- How much space do I need behind my desk for a monitor arm?
- Plan for at least 50 mm behind the desk for compact clamps and 75–100 mm for many gas-spring arms. Some arms need more room if the first hinge moves backward during adjustment.
- Do monitor arms damage desks?
- They can damage desks if the clamp is too tight, the material is soft, or the load is too heavy for the mounting area. A reinforcement plate and correct weight rating greatly reduce the risk.
